High Pressure Piston Pumps

High Pressure Piston Pumps

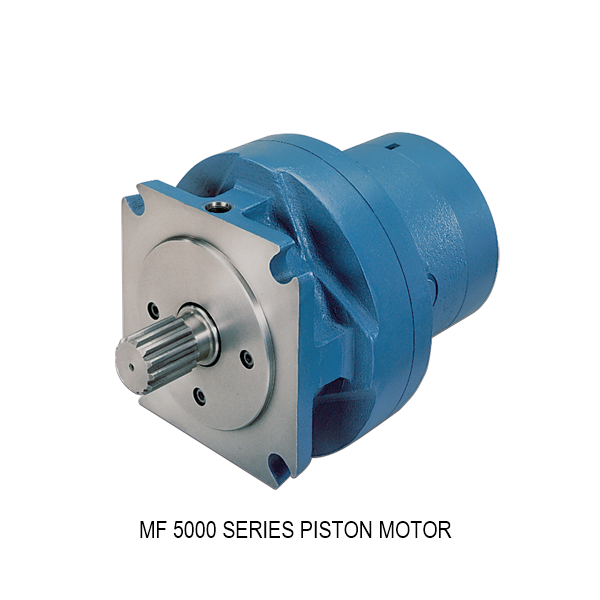

PF500SeriesFixed Displacement Check Ball Pumps

Flow Rate : 0.59 to 2.57 lpm @ 1800 rpm

Pressure Rated : 700 bar, Maximum: 1040 bar

  • Power requirements as low as 1.0 HP at 10 000 psi (0.75 kW at 700 bar).
  • Bi-directional rotation providing constant flow direction regardless of drive shaft rotation.
  • Split-Flow® models can supply independent flows from up to four separate outlets.
  • Used on wellhead control panel systems, solar-powered systems, and power packs on high-torque service tools.
Catalogue

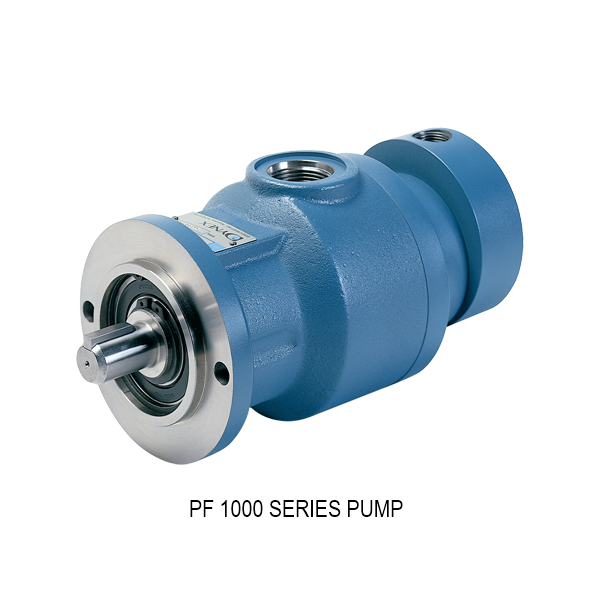

PF1000SeriesFixed Displacement Check Ball Pumps

Flow Rate: 5.7 to 22.3 lpm @ 1800 rpm

Pressure Rated: 420 bar, Maximum: 700 bar

  • Contamination tolerant, for operation in dirty environments.
  • Bi-directional rotation providing constant flow direction regardless of drive shaft rotation.
  • Split-Flow® models can supply independent flows from up to four separate outlets.
  • Used on wellhead control panel systems, lifting, skidding, and jacking applications.
Catalogue
