Flow Meter
Gear Flow Meters
Flow rate : from 0.1 to 150 lpm
Pressure up to 420 Bar
Output options: 4 to 20 mA and Frequency
Bi-directional operation
Seals: NBR[Nitrile]/others available
Internal parts: Gears: DIN 1.4122 SS
Accuracy +/-1% of Indicative Reading
This gear type flow meter has a built-in micro-controller that linearises and conditions the signal from the Flow meter. This enables due to connect directly into your Digital Display / PLC

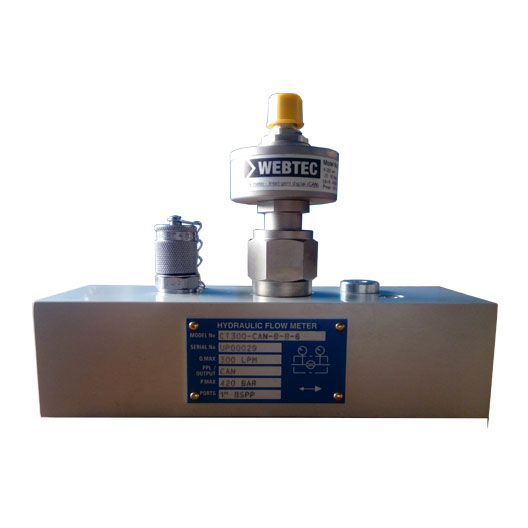

CT Series Flow Meters
CT Series Flow Meters
Pressure up to 480 Bar
Temperature: 120°C
Outputs available : mA, V, Pulse, SR and CAN
Bi-directional
For use with oils, fuels, phosphate- esters
Ports : BSP or SAE, inlet / Output ports

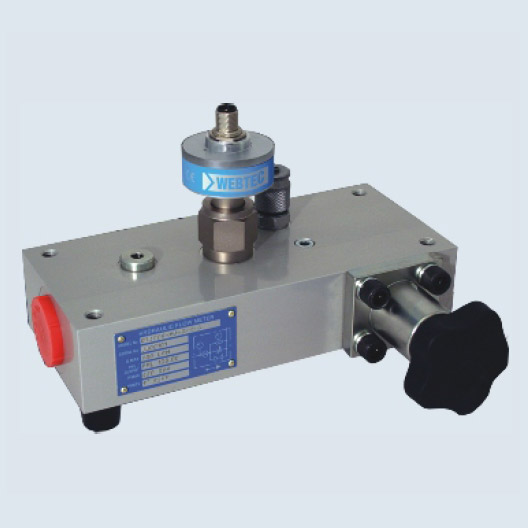

CTR Series Flow Meters
3 Models cover range 10 - 750 lpm
Pressure: 480 Bar
Temperature:120°C
Turbine Flow Meter with Loading Valve
Bi-directional
For use with oils, fuels, phosphate-esters
Outputs available: SR and CAN, compatible with Data Loggers

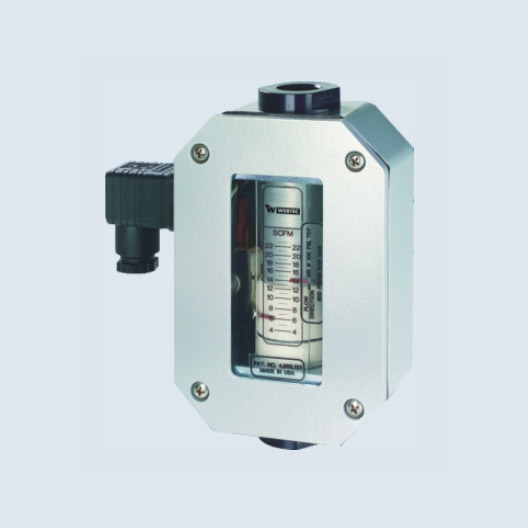

Flow Monitor with Switch
Easily adjustable, dry contact alarm settings
Available for Fluids or Air
Body material: Aluminium / Brass or Stainless Steel
Port sizes : 3/8" to 2"
Accurate within 2.5% over mid-scale, 4% FSD
Double break switches available on request
